Quick Start Guide

What’s in the Box

1 Netcraze PoE+ Adapter;
1 power сord;
1 Quick Start Guide.

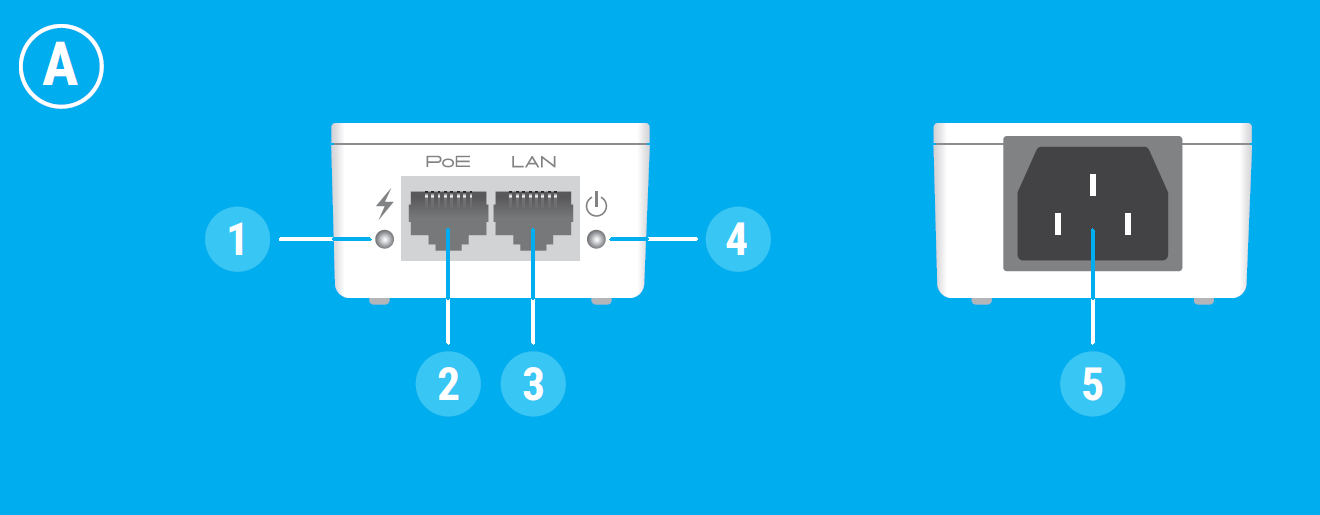

Details (Fig. A)

PoE LED O
Solid green — The adapter is supplying power to a connected device.
Off — No 802.3af/at-compliant device is connected.
PoE Network Port
This 10/100/1000 Mbps port provides power and data to an 802.3af/at-compliant device. The power consumption of the connected device must not exceed 30 W.
LAN Network Port
This 10/100/1000 Mbps port is for connecting to an upstream switch or router.
Power LED C
Solid green — The adapter is operating properly.
Off — The adapter is not connected to the power supply.
Power Connector
For connecting the adapter to a 100–240 V 50/60 Hz mains using the supplied power cord.

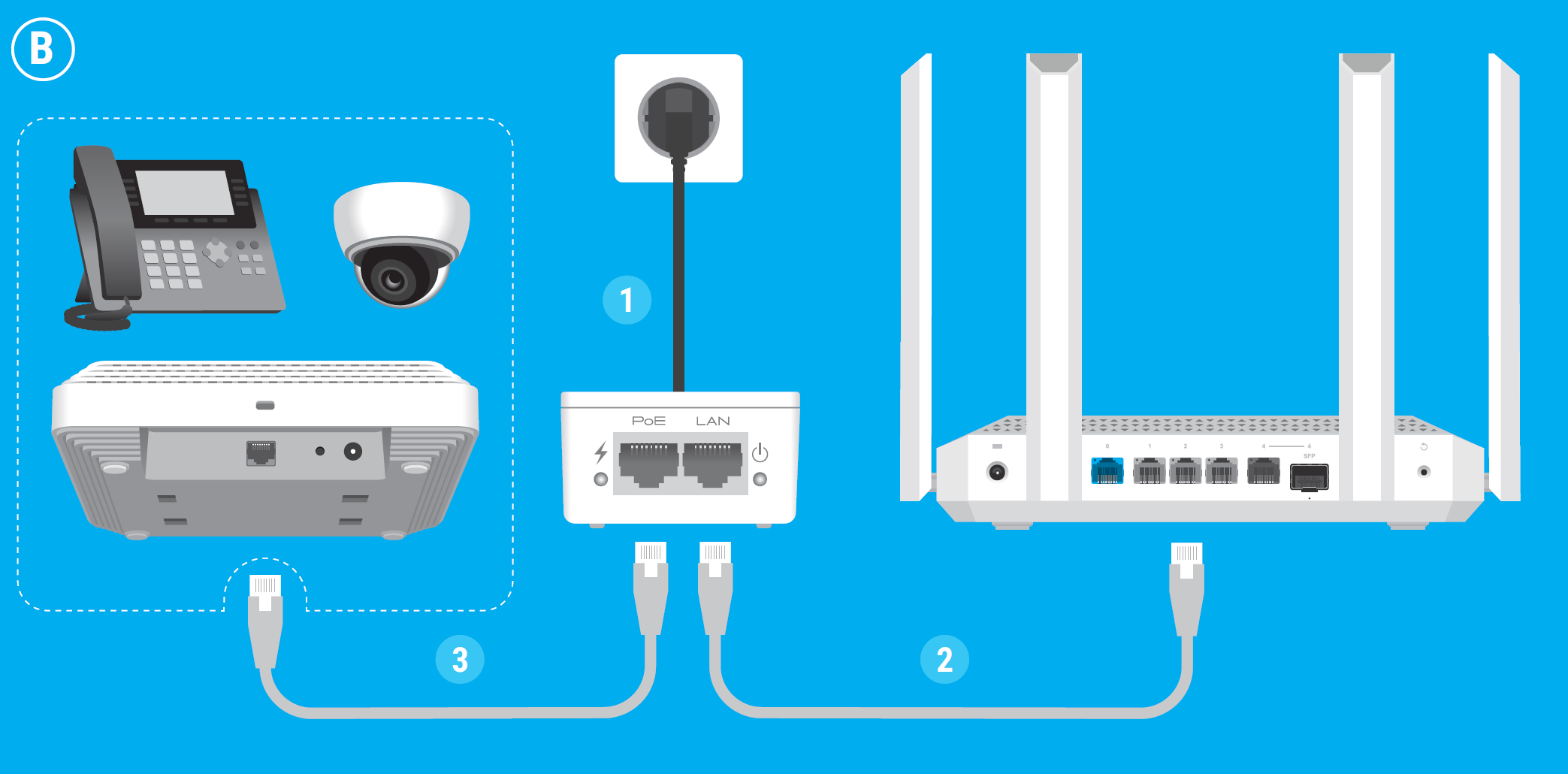

Connection (Fig. B)

Connect your Netcraze PoE+ Adapter (hereinafter ‘adapter’) to the power source. Check that Power LED C is illuminated.
Connect LAN Network Port to an upstream router or switch with an Ethernet cable (not included in the package).
Connect PoE Network Port to a powered device, such as a Wi-Fi access point, IP phone or IP camera. Check that PoE LED O is illuminated. The quality and length of the Ethernet cabling may affect the power received and the data rate. Use Cat.5e or better Ethernet cables.

Support

For technical support or other information, please visit https://support.netcraze.ru/.

Power supply parameters

Input: T100–240 V, 50–60 Hz, 0.8 А;
Output: F 53.5 В, 30 W.

Operating Environment

Operating temperature range: 0 to +40°C;
Operating humidity: 20 to 90% non-condensing;

Storage Conditions

Storage temperature range: –30 to +70°C;
Storage humidity: 10 to 90% non-condensing.

Safety

Your adapter is ONLY for indoor use — NEVER use it outdoors. Never use the adapter in an enclosed space, and ensure that it is easily accessible. Stop using any damaged adapter IMMEDIATELY. The adapter contains no user serviceable parts — DO NOT OPEN. Keep the adapter away from water, excessive humidity or heat, and direct sunlight.

Warranty

Netcraze guarantees that this product will be free from hardware defects related to materials and assembly for three years from the documented date of purchase by the first end user or the date of the first contact with customer support, whichever comes first. When a device is added to a Netcraze Account user account, the warranty is extended by one additional year. However, regardless of the date of sale, the warranty period cannot exceed five years from the date of manufacture of the product. The date of manufacture is determined by the product serial number printed on its label. The serial number format is: S YY WW xxxxxxxx, where YY is the year of manufacture and WW is the week number of manufacture in the year.

In the event of defects being identified and a justified complaint being received from the consumer during this period, Netcraze will, at its discretion, repair the product free of charge, replace it with a new one, or provide a replacement product that is equivalent in terms of functionality and reliability.

The warranty applies only to Netcraze products sold through Netcraze's official distribution channels. Warranty service is provided through Netcraze's authorised service centres located in the country where the product was sold.

You can find the full warranty terms on the netcraze.ru website.

The warranty is voided in the following cases:

The product label is missing or serial number or service code on the label has been changed, is not readable, or the reading is ambiguous;
The product was used inappropriately or not in accordance with the instruction manual;
The device was damaged due to the connection of defective third party equipment to it;
The product was rendered inoperable by the improper insertion of a non-compatible object, substances, or liquids, as a result of a lightning strike, flooding, fire, improper ventilation, other external factors and force majeure situations;
The product has been opened, altered, or repaired by unauthorized persons or service centers;
The product was damaged during transportation, except when the transportation was carried out by an authorized Netcraze service center.

Netcraze shall not be liable for any damage, direct or indirect, caused to people, pets, or any property if it resulted from the misuse of the product, failure to comply with the rules and conditions of use or storage of the product, or intentional or negligent actions of the consumer or third parties.

Product lifetime

The manufacturer's specified lifetime of the product is 4 years, provided that the product is used in strict accordance with these instructions and applicable technical standards.

Certification

The product has been approved for use by state certification authorities and complies with TR CU 004/2011 ‘On the safety of low-voltage equipment’ and TR CU 020/2011 ‘Electromagnetic compatibility of technical means’. You can find the certificates valid in your country on the netcraze.ru website.

Disposal

Do not dispose of your adapter, including power adapter and cables, with your other household waste. Contact your local authority for disposal information.
